SKU: 170PM05228R

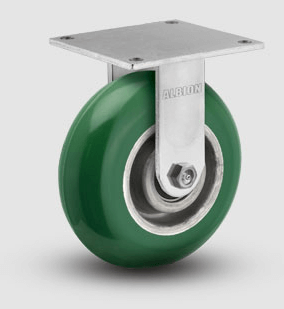

Albion 170 Series Economical Kingpinless 170PM05228R

Material

Green Round Tread Polyurethane on Aluminum

Load Capacity (lbs)

1000

Wheel Diameter (inch)

5

Tread Width (inch)

2

Overall Height (inch)

6-1/2

Wheel Bearing Type

Precision Ball

Mounting Type

Plate

Series

Albion 170 Series Economical Kingpinless

Swivel Lead (inches)

None

Top Plate Size (inch)

4 X 4-1/2

Bolt Hole Spacing (inch)

3- 3-5/8 x 2-5/8- 3

Configuration Type

Rigid

Description

5″ x 2″ rigid caster from the Albion 170 Economical Kingpinless series. A polyurethane model with Green Round Tread Polyurethane on Aluminum material. Use this Economical Kingpinless caster for applications where kingpin casters are not effective enough to hold up to the shock or impact you’re excepted to need. Typical applications: dollies, dough troughs, platform trucks, tow line, utility carts, tooling fixtures, and scrap metal carriers. 95 Shore A.

0/5 (0 Reviews)
Prices subject to change due to current global market and supply chain volatility.
