SKU: 410PY08509S

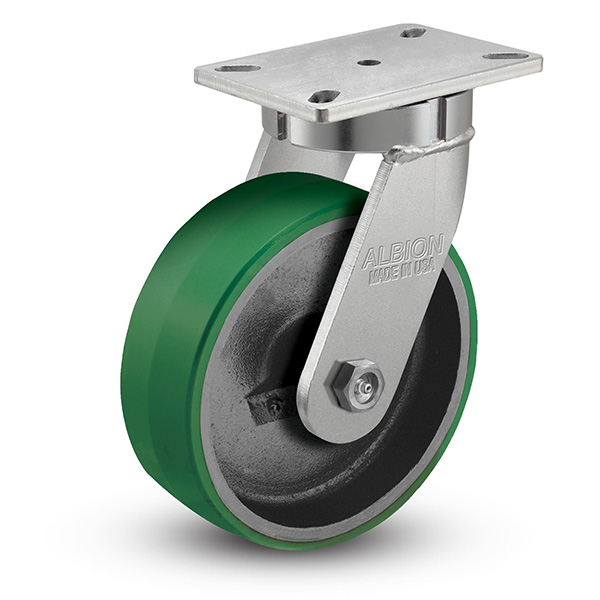

Albion 410 Series Heavy Duty Kingpinless Caster

Material

Polyurethane on Cast Iron

Load Capacity (lbs)

2600

Wheel Diameter (inch)

8

Tread Width (inch)

3

Overall Height (inch)

10-1/2

Wheel Bearing Type

Tapered Roller

Brand

Albion

Mounting Type

Plate

Series

Albion 410 Series Kingpinless

Swivel Lead (inches)

2-15/16

Top Plate Size (inch)

5-1/4" x 7-1/4"

Bolt Hole Spacing (inch)

3-3/8" – 4-1/8" x 5-1/4" – 6-1/8"

Configuration Type

Swivel

Description

Albion 410 series 8″ x 3″ kingpinless heavy duty swivel caster with optional brake and swivel lock delivers superior strength in rugged applications. Typical applications include conveyor-drawn tow-trucks, heavy duty bakery racks, production dollies, and heavy duty dough troughs. A polyurethane on cast iron caster with a tapered roller bearing is finished with environmentally friendly RoHS Zinc plating for greater corrosion resistance than paint.
