SKU: 310AX10228S

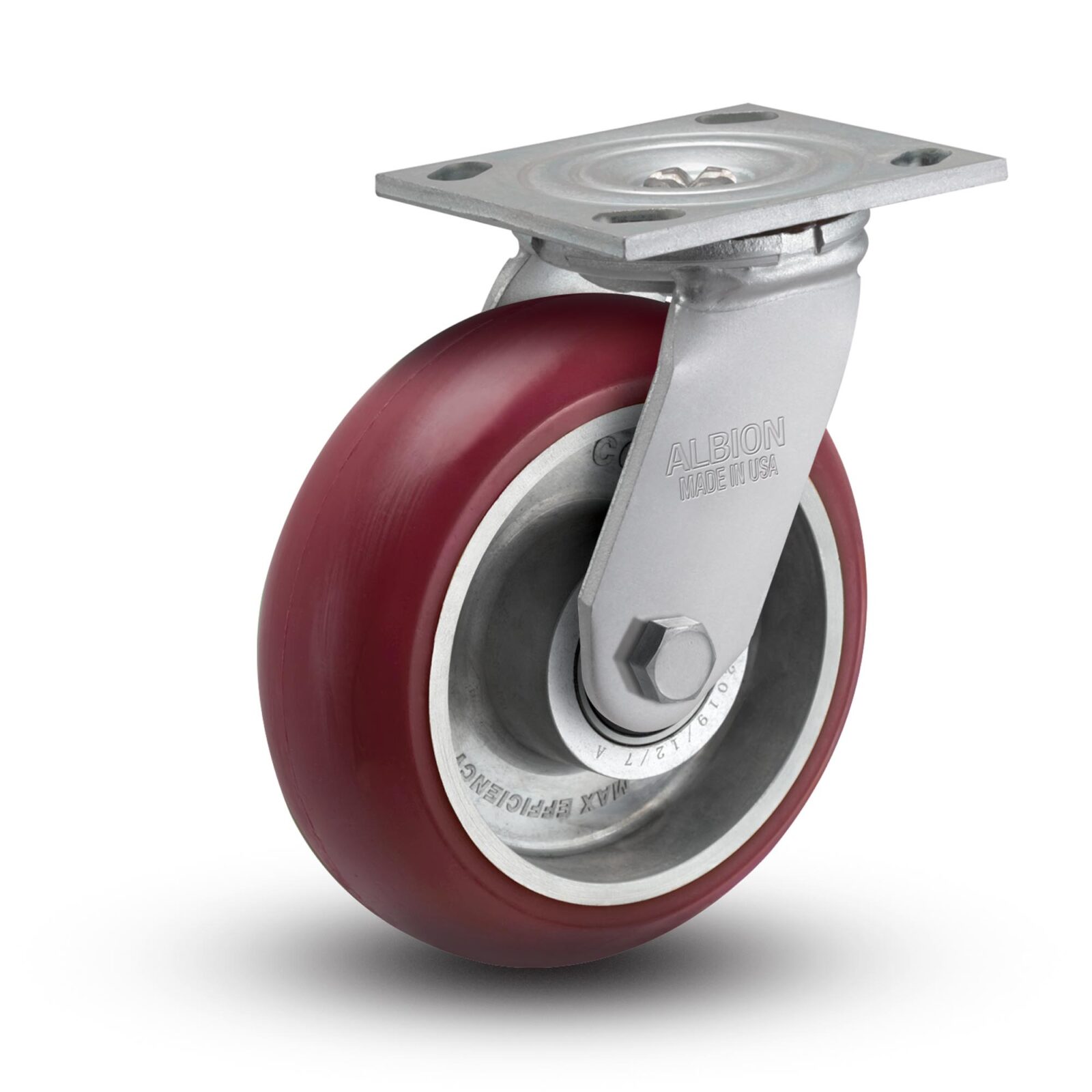

Albion 310 Series Heavy Duty Kingpinless Caster 310AX10228S

Material

CG-MAX EFFICIENCY WHEEL™ Maroon Round Polyurethane on Aluminum

Load Capacity (lbs)

3100

Wheel Diameter (inch)

10

Tread Width (inch)

2

Overall Height (inch)

12

Wheel Bearing Type

Precision Ball

Brand

Albion

Mounting Type

Plate

Series

Albion 310 Series Kingpinless

Swivel Lead (inches)

3-1/2

Top Plate Size (inch)

4-1/2" x 6-1/4"

Bolt Hole Spacing (inch)

2-7/16" – 3-3/8" x 4-15/16" – 5-1/4"

Configuration Type

Swivel

Description

Albion 310 series 10″ x 2″ kingpinless heavy duty swivel caster with optional brakes and swivel lock is constructed from high quality, heat treated AISI 1045 laser-cut steel. Built to deliver superior strength, and rugged applications like conveyor-drawn tow-trucks, heavy duty bakery racks, production dollies, and heavy duty dough troughs. This CG-MAX EFFICIENCY WHEEL™ Maroon Round Polyurethane on Aluminum offers RoHS Zinc plating for greater corrosion resistance than paint. 85 Shore A.
