SKU: SX125-TPP-125DL-TP

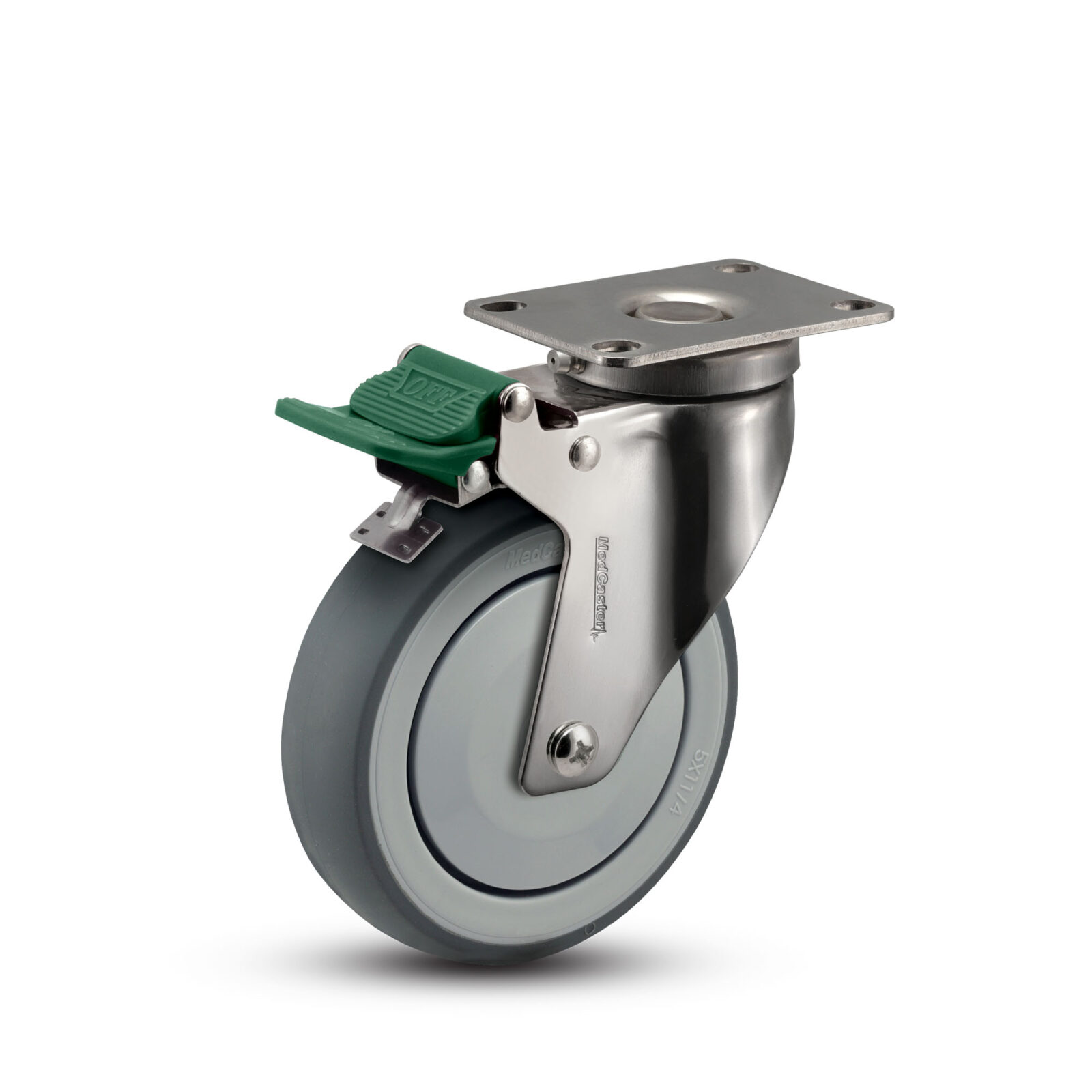

MedCaster Stainless Steel (SX) Caster SX125-TPP-125DL-TP

Quantity discounts available
TP01 (inches) TP13 (mm)
Top Plate: 2-1/2″ x 3-5/8″ Top Plate: 70mm x 95mm
Bolt Hole Spacing:  1-3/4″ x 2-13/16″ – 3-1/16″  Bolt Hole Spacing: 45mm-52mm x 72mm-75mm
5/16” Attaching Bolt 8mm Attaching Bolt
Material

Thermoplastic Rubber

Wheel Bearing Type

Precision Ball

Brand

MedCaster

Mounting Type

Top Plate

Series

Medcaster Stainless Steel (SX)

Configuration Type

Directional Lock, Swivel

Swivel Top Plate

None, TP01, TP13

Wheel Diameter (mm)

125mm

Tread Width (mm)

32

Load Capacity (kg)

125

Mounting Height (mm)

164

Swivel Radius (mm)

110

Description

MedCaster Stainless Steel (SX) 125mm x 32mm directional lock swivel caster made for institutional use (case carts, lab equipment, and sterilization carts). The precision ball bearings make for easier rollability and the pedal brake design makes for an easy on/off function. Green brake locks swivel only for easier tracking. The Thermoplastic Rubber material withstands a 210 degree Fahrenheit wash down. Durometer: of 85A +/- 5. Choose from various top plate options before requesting your quote.

0/5 (0 Reviews)
Prices subject to change due to current global market and supply chain volatility.
